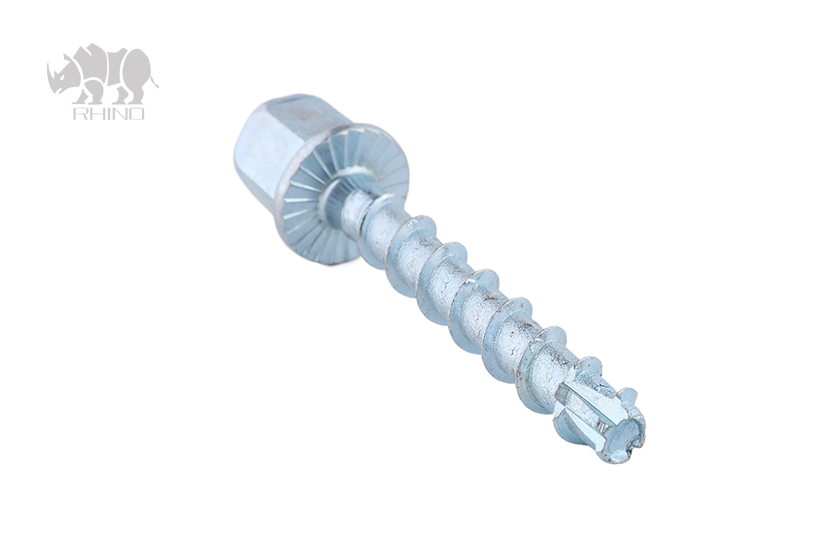

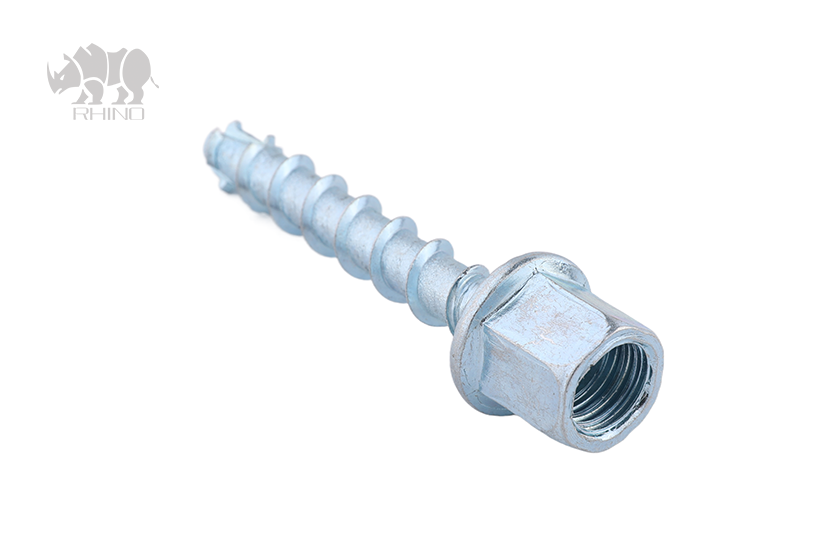

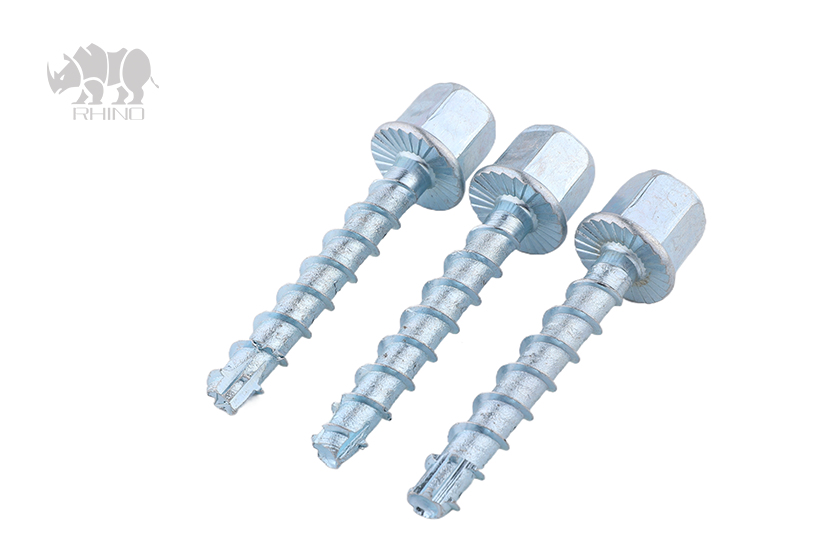

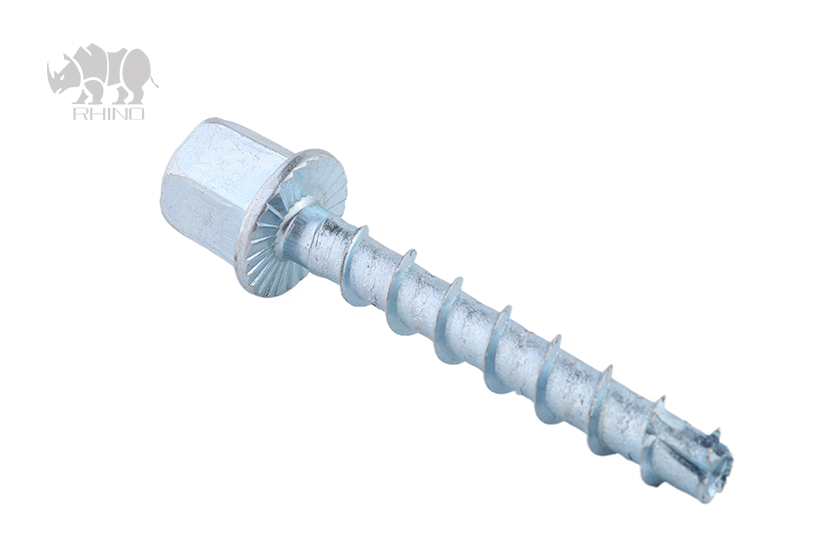

Concrete bolts are used to secure objects to masonry or concrete through mechanical connections or adhesives.
●Material: Carbon steel, Stainless steel
●Finish: Zn3+
●Nut Size: M6, M8, M10, M12
●Thread Size: M6, M8
●A/F: 10, 13, 16
| 吊顶混凝土自攻锚栓 | |||
| Specification | |||
| Nut Size | Thread Size | Length | A/F Across/Flat |
|---|---|---|---|
| M6 | M6 | 30-40 | 10 |
| M8 | M6 | 30-75 | 13 |
| M10 | M6 | 40-75 | 13 |
| M12 | M8 | 40-100 | 16 |
| 1/4 | 1/4 | 30-40 | 10 |
| 3/8 | 1/4 | 30-75 | 13 |
| 1/2 | 5/16 | 40-100 | 19 |
