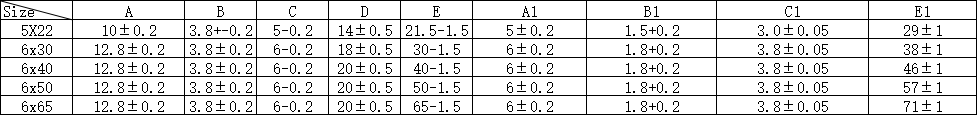

| Size | A | B | C | D | E | A1 | B1 | C1 | E1 |
|---|---|---|---|---|---|---|---|---|---|
| 5X22 | 10±0.2 | 3.8+-0.2 | 5-0.2 | 14±0.5 | 21.5-1.5 | 5±0.2 | 1.5+0.2 | 3.0±0.05 | 29±1 |
| 6x30 | 12.8±0.2 | 3.8±0.2 | 6-0.2 | 18±0.5 | 30-1.5 | 6±0.2 | 1.8+0.2 | 3.8±0.05 | 38±1 |
| 6x40 | 12.8±0.2 | 3.8±0.2 | 6-0.2 | 20±0.5 | 40-1.5 | 6±0.2 | 1.8+0.2 | 3.8±0.05 | 46±1 |
| 6x50 | 12.8±0.2 | 3.8±0.2 | 6-0.2 | 20±0.5 | 50-1.5 | 6±0.2 | 1.8+0.2 | 3.8±0.05 | 57±1 |
| 6x65 | 12.8±0.2 | 3.8±0.2 | 6-0.2 | 20±0.5 | 65-1.5 | 6±0.2 | 1.8+0.2 | 3.8±0.05 | 71±1 |
