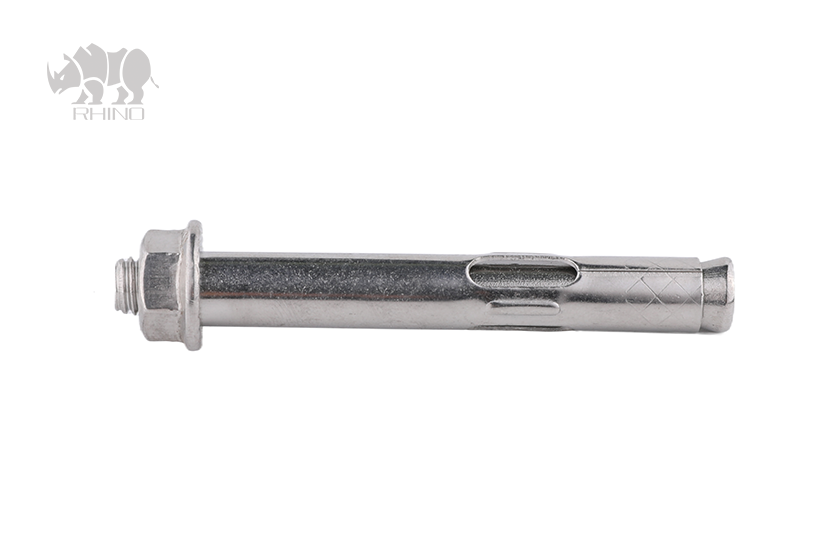

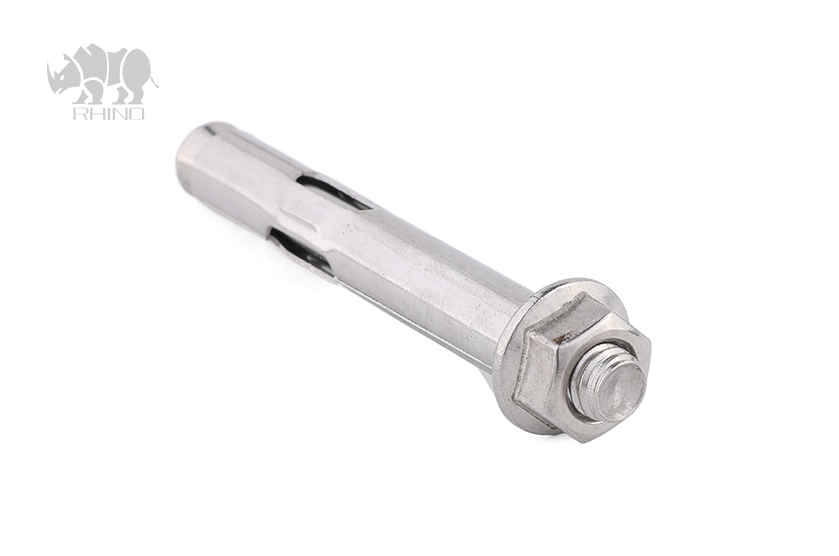

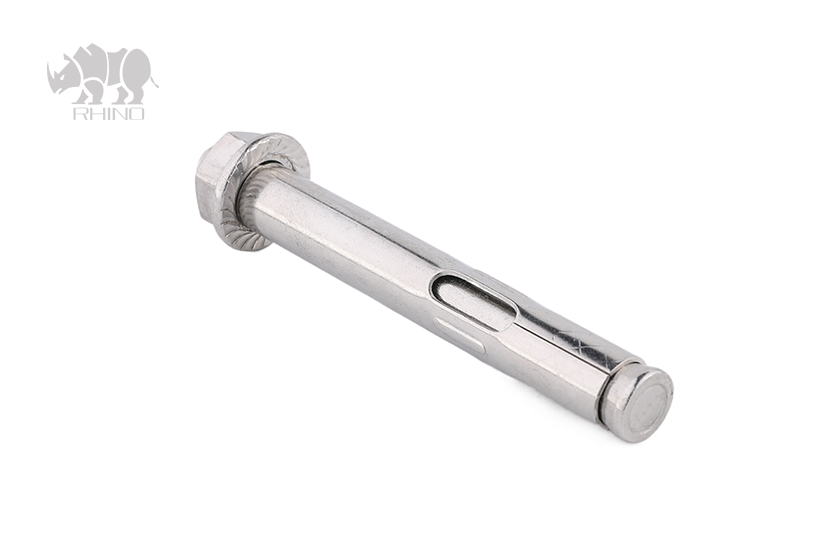

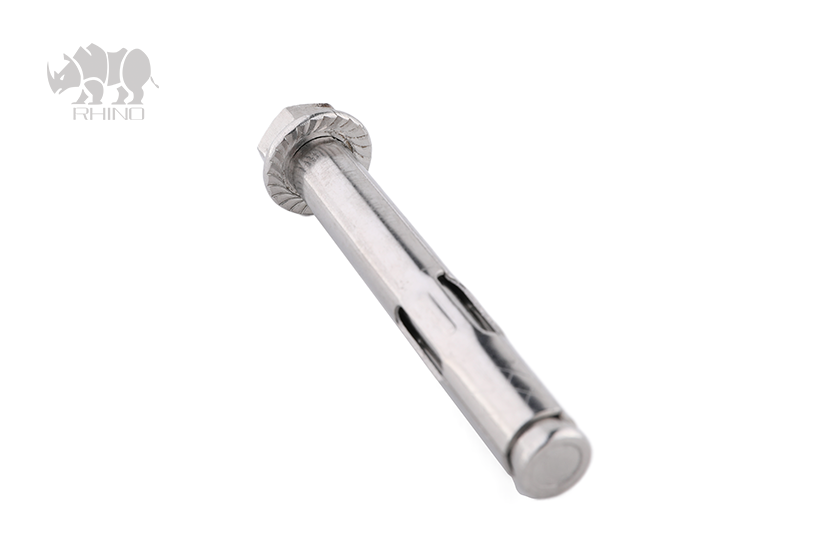

A fastening assembly consisting of a bolt and an expansion sleeve that anchors into substrates by expanding against the hole wall.
●Material: 304
●Finish: Plain
●Outer Dia.(Sleeve)(mm): 8, 10, 12, 16, 20
●Outer Dia.(Bolt)(mm): 6, 8, 10, 12, 16
| Size | Bolt Length | Outer Dia.(Sleeve) | Outer Dia.(Bolt) | Material | Finish |
|---|---|---|---|---|---|
| 8х40 | 40 | 8 | 6 | 304 | Plain |
| 8х65 | 65 | 8 | 6 | ||
| 8х85 | 85 | 8 | 6 | ||
| 8х100 | 100 | 8 | 6 | ||
| 8х120 | 120 | 8 | 6 | ||
| 10х40 | 40 | 10 | 8 | ||
| 10х50 | 50 | 10 | 8 | ||
| 10х60 | 60 | 10 | 8 | ||
| 10х77 | 77 | 10 | 8 | ||
| 10х97 | 97 | 10 | 8 | ||
| 10х125 | 125 | 10 | 8 | ||
| 10х130 | 130 | 10 | 8 | ||
| 10х150 | 150 | 10 | 8 | ||
| 10х180 | 180 | 10 | 8 | ||
| 10х200 | 200 | 10 | 8 | ||
| 12х60 | 60 | 12 | 10 | ||
| 12х75 | 75 | 12 | 10 | ||
| 12х99 | 99 | 12 | 10 | ||
| 12х120 | 120 | 12 | 10 | ||
| 12х129 | 129 | 12 | 10 | ||
| 12х150 | 150 | 12 | 10 | ||
| 12х180 | 180 | 12 | 10 | ||
| 12х200 | 200 | 12 | 10 | ||
| 12х250 | 250 | 12 | 10 | ||
| 16х65 | 65 | 16 | 12 | ||
| 16х111 | 111 | 16 | 12 | ||
| 16х147 | 147 | 16 | 12 | ||
| 16х180 | 180 | 16 | 12 | ||
| 16х200 | 200 | 16 | 12 | ||
| 16х220 | 220 | 16 | 12 | ||
| 16х250 | 250 | 16 | 12 | ||
| 20х75 | 75 | 20 | 16 | ||
| 20х110 | 110 | 20 | 16 | ||
| 20х150 | 150 | 20 | 16 | ||
| 20х200 | 200 | 20 | 16 | ||
| 20х250 | 250 | 20 | 16 | ||
| 20х300 | 300 | 20 | 16 |
