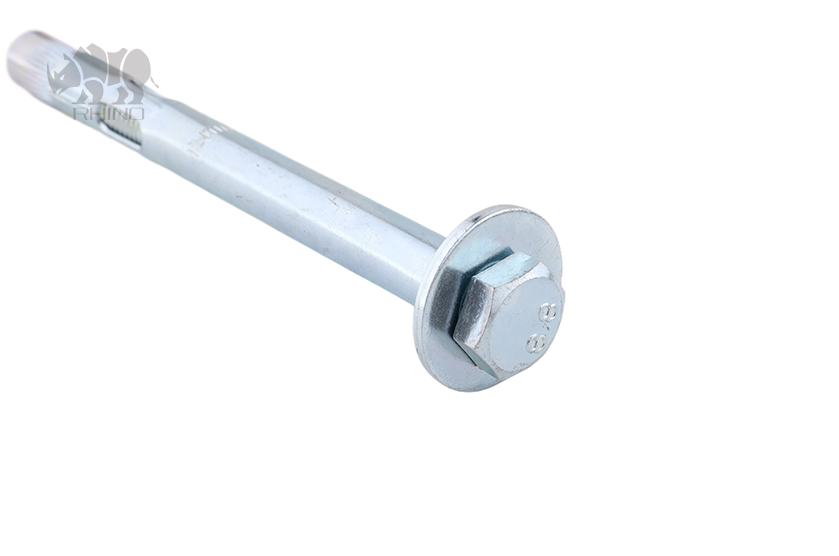

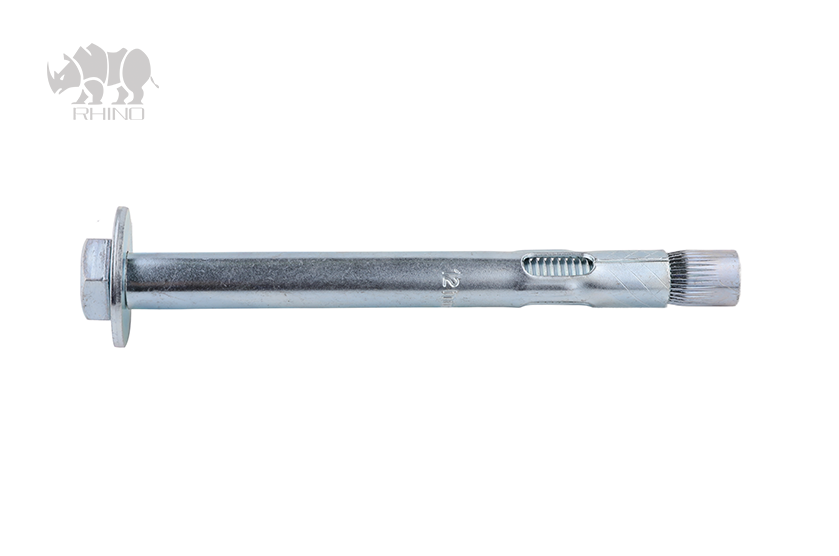

A fastening assembly consisting of a bolt and an expansion sleeve that anchors into substrates by expanding against the hole wall.
●Material: Q195
●Finish: Blue Zinc
●Outer Dia.(Sleeve)(mm): 8, 10, 12, 16, 20
●Outer Dia.(Bolt)(mm): 6, 8, 10, 12, 16
| Size | Bolt Length | Outer Dia.(Sleeve) | Outer Dia.(Bolt) | Finish | Material |
|---|---|---|---|---|---|
| 8х45 | 45 | 8 | 6 | Blue Zinc | Q195 |
| 8х60 | 60 | 8 | 6 | Q195 | |
| 8х80 | 80 | 8 | 6 | ||
| 8х85 | 85 | 8 | 6 | ||
| 8х90 | 90 | 8 | 6 | ||
| 8х100 | 100 | 8 | 6 | ||
| 10х50 | 50 | 10 | 8 | ||
| 10х55 | 55 | 10 | 8 | ||
| 10х60 | 60 | 10 | 8 | ||
| 10х65 | 65 | 10 | 8 | ||
| 10х80 | 80 | 10 | 8 | ||
| 10х85 | 85 | 10 | 8 | ||
| 10х100 | 100 | 10 | 8 | ||
| 10х110 | 110 | 10 | 8 | ||
| 10х120 | 120 | 10 | 8 | ||
| 10х125 | 125 | 10 | 8 | ||
| 10х130 | 130 | 10 | 8 | ||
| 10х140 | 140 | 10 | 8 | ||
| 10х150 | 150 | 10 | 8 | ||
| 12х65 | 65 | 12 | 10 | ||
| 12х80 | 80 | 12 | 10 | ||
| 12х100 | 100 | 12 | 10 | ||
| 12х110 | 110 | 12 | 10 | ||
| 12х120 | 120 | 12 | 10 | ||
| 12х130 | 130 | 12 | 10 | ||
| 12х140 | 140 | 12 | 10 | ||
| 12х150 | 150 | 12 | 10 | ||
| 12х160 | 160 | 12 | 10 | ||
| 12х180 | 180 | 12 | 10 | ||
| 12х200 | 200 | 12 | 10 | ||
| 16х111 | 111 | 16 | 12 | ||
| 16х147 | 147 | 16 | 12 | ||
| 16х180 | 180 | 16 | 12 | ||
| 16х200 | 200 | 16 | 12 | ||
| 16х220 | 220 | 16 | 12 | ||
| 20х100 | 100 | 20 | 16 | ||
| 20х160 | 160 | 20 | 16 | ||
| 20х200 | 200 | 20 | 16 |
