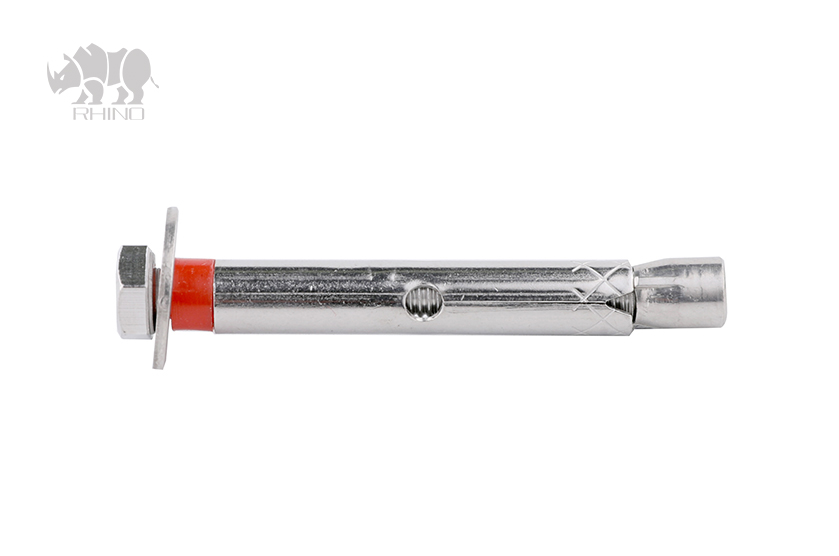

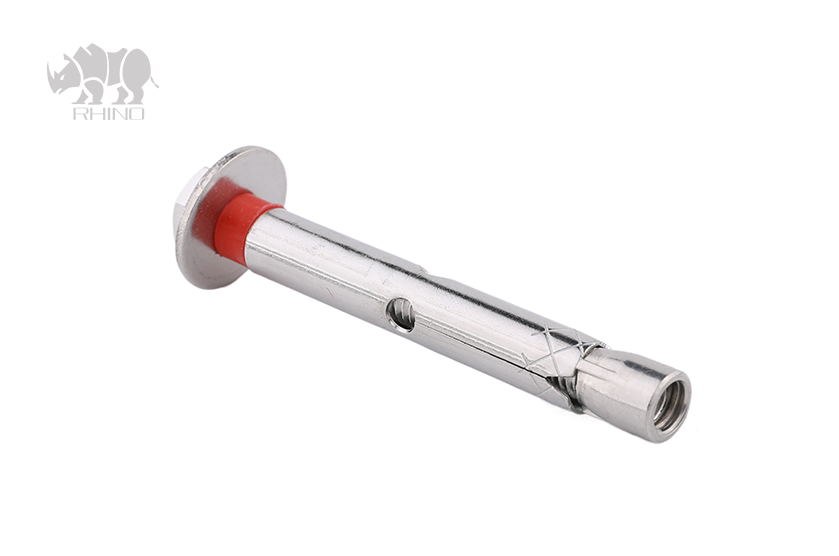

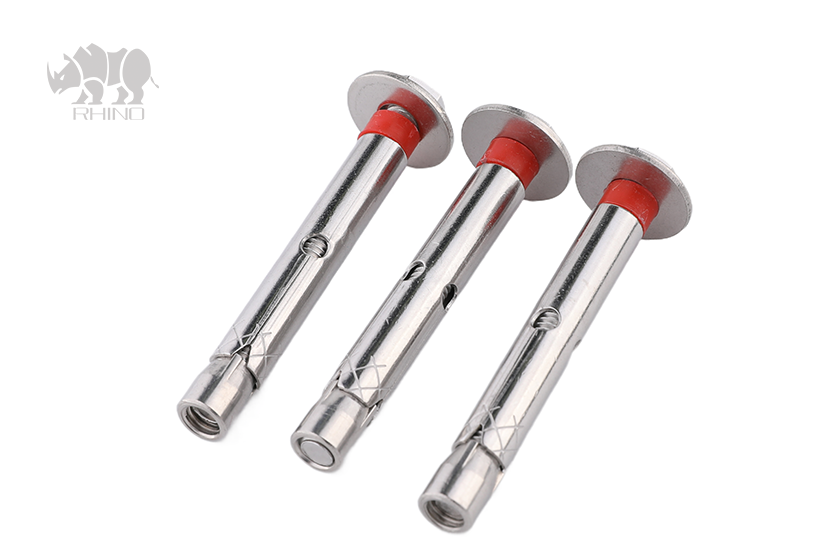

A fastening assembly consisting of a bolt and an expansion sleeve that anchors into substrates by expanding against the hole wall.
●Material: 35#(Bolt)/Q235(Sleeve)
●Finish: Blue Zinc
●Grade: 6.8
●Installation hole diameter(mm): 10, 12, 14,16 ,18, 22
| Size | Outer Dia.(Sleeve) | Finish | Material | Grade | Bolt Length | Installation hole diameter | Drilling depth(Min) | Effective burial depth(Min) | Max thickness of the fixed object |
|---|---|---|---|---|---|---|---|---|---|
| 6*8*45 | 8 | Blue Zinc | 35#(Bolt)/Q235(Sleeve) | 6.8 | 45 | 10 | 50 | 30 | 5 |
| 6*8*60 | 8 | Blue Zinc | 35#(Bolt)/Q236(Sleeve) | 6.8 | 60 | 10 | 65 | 35 | 15 |
| 8*10*60 | 10 | Blue Zinc | 35#(Bolt)/Q237(Sleeve) | 6.8 | 60 | 12 | 65 | 42 | 5 |
| 8*10*80 | 10 | Blue Zinc | 35#(Bolt)/Q238(Sleeve) | 6.8 | 80 | 12 | 85 | 52 | 15 |
| 10*12*70 | 12 | Blue Zinc | 35#(Bolt)/Q239(Sleeve) | 6.8 | 70 | 14 | 75 | 49 | 5 |
| 10*12*100 | 12 | Blue Zinc | 35#(Bolt)/Q240(Sleeve) | 6.8 | 100 | 14 | 105 | 59 | 25 |
| 10*14*70 | 14 | Blue Zinc | 35#(Bolt)/Q241(Sleeve) | 6.8 | 70 | 16 | 75 | 49 | 5 |
| 10*14*100 | 14 | Blue Zinc | 35#(Bolt)/Q242(Sleeve) | 6.8 | 100 | 16 | 105 | 59 | 25 |
| 12*16*80 | 16 | Blue Zinc | 35#(Bolt)/Q243(Sleeve) | 6.8 | 80 | 18 | 85 | 58 | 5 |
| 12*16*100 | 16 | Blue Zinc | 35#(Bolt)/Q244(Sleeve) | 6.8 | 100 | 18 | 105 | 58 | 25 |
| 16*20*110 | 20 | Blue Zinc | 35#(Bolt)/Q245(Sleeve) | 6.8 | 110 | 22 | 115 | 73 | 15 |
