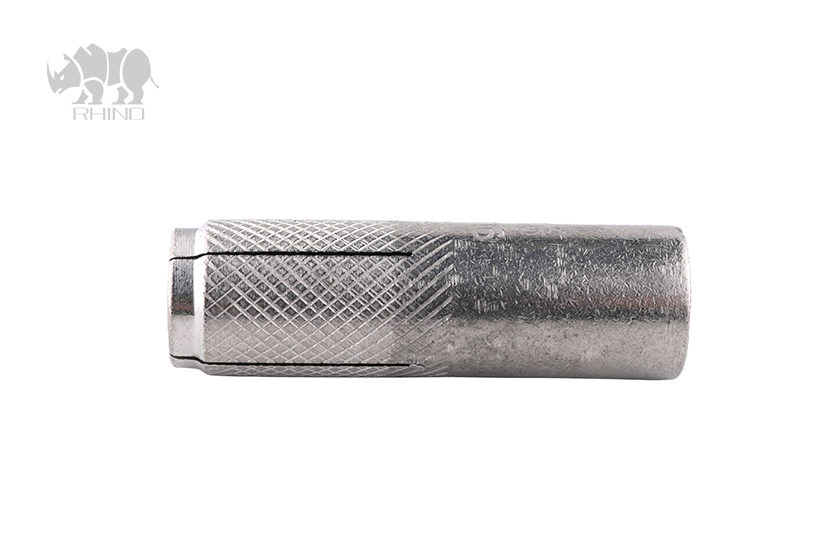

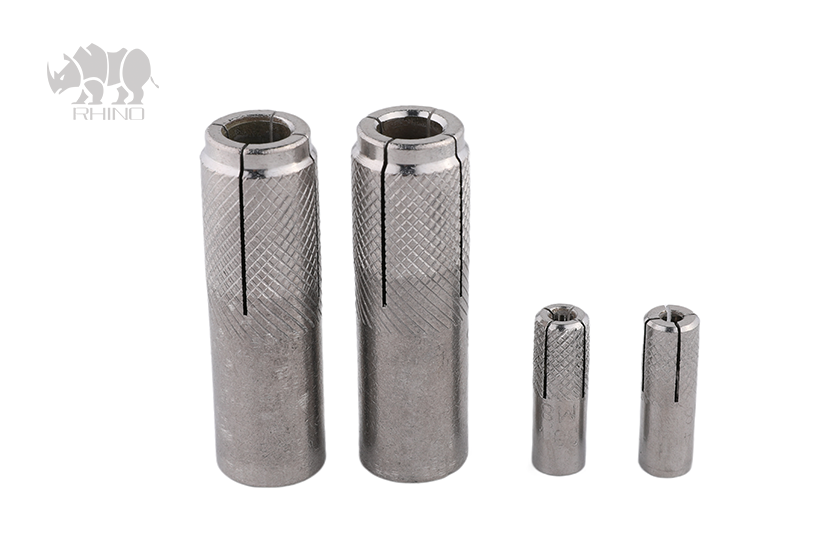

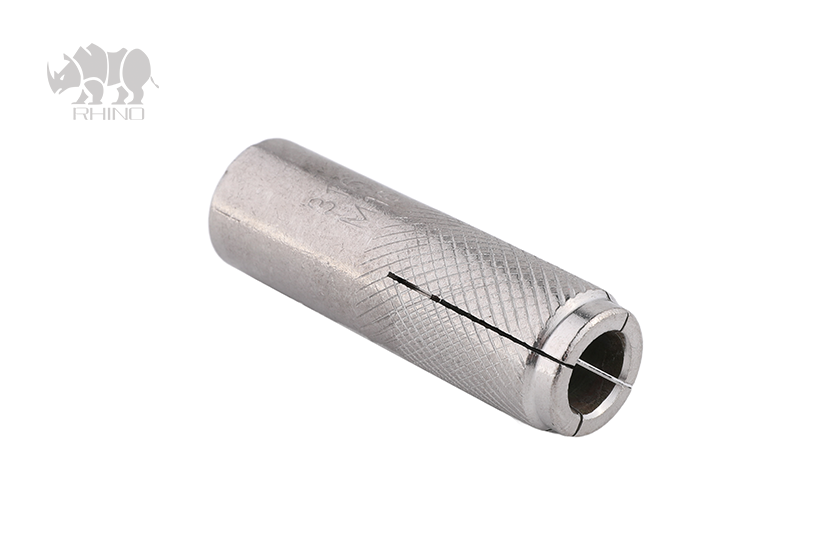

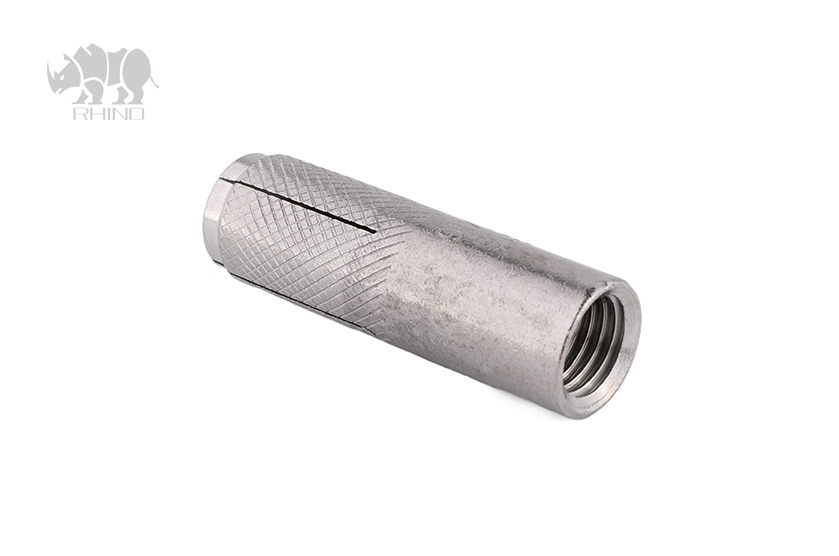

A metal anchor is a component that secures attachments to substrates like concrete through mechanical expansion or chemical bonding.
●Material: 304, 316
●Finish: Plain
●Installation hole diameter(mm): 8, 10, 12, 16, 18, 20, 25
●Effective burial depth(mm): 15,20, 25, 30, 35, 40, 50
| Finish | Material | Installation hole dia. | Effective burial depth | Max thickness of the fixed object | Size |
|---|---|---|---|---|---|
| Plain | 304/316 | φ8 | 15mm | 10mm | 6×8×25 |
| Plain | 304/316 | φ10 | 20mm | 15mm | 8×10×30 |
| Plain | 304/316 | φ12 | 25mm | 20mm | 10×12×40 |
| Plain | 304/316 | φ16 | 30mm | 25mm | 12×16×50 |
| Plain | 304/316 | φ18 | 35mm | 30mm | 14×18×60 |
| Plain | 304/316 | φ20 | 40mm | 35mm | 16×20×65 |
| Plain | 304/316 | φ25 | 50mm | 45mm | 20×25×80 |
