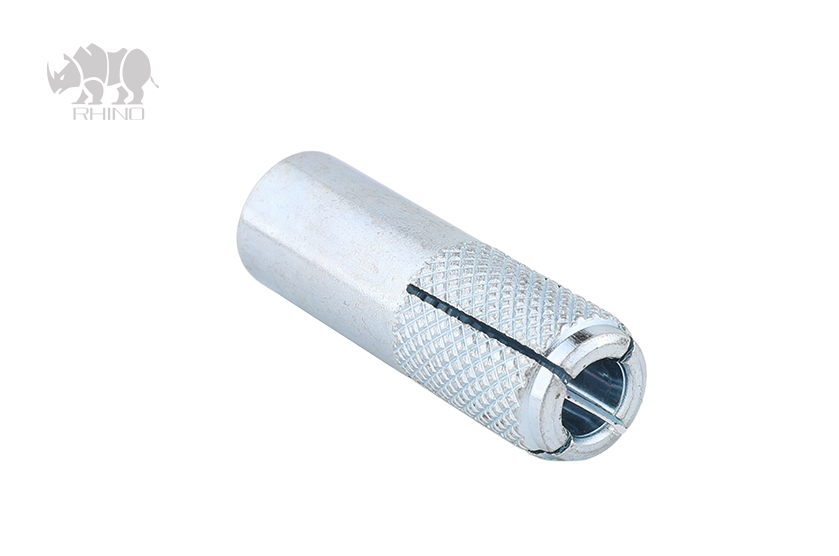

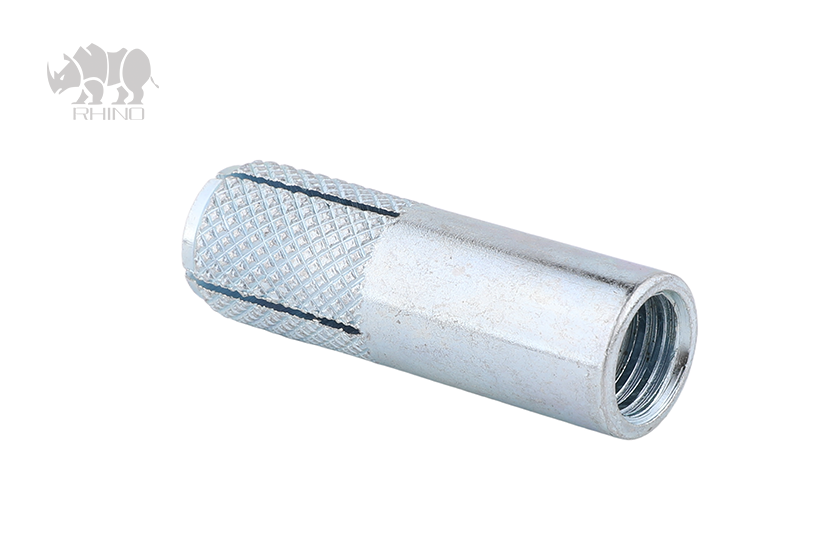

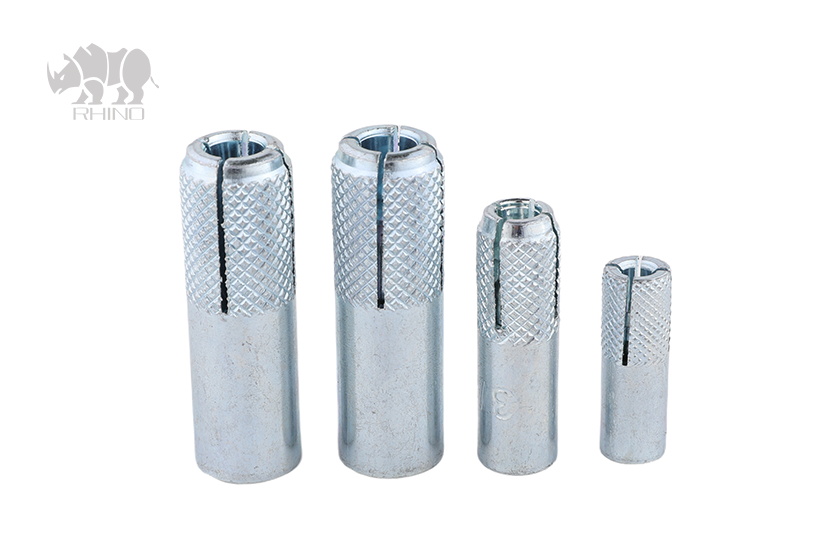

A metal anchor is a component that secures attachments to substrates like concrete through mechanical expansion or chemical bonding.
●Material: Q195
●Finish: Blue Zinc/Yellow Zinc
●Installation hole diameter(mm): 8, 10, 12, 16, 18, 20, 25
●Effective burial depth(mm): 15,20, 25, 30, 35, 40, 50
| Finish | Material | Grade | Installation hole dia. | Effective burial depth | Max thickness of the fixed object | 30Mpa Tensile standard load | 30Mpa Shear standard load | 30Mpa Tensile safety load | SIZE |
|---|---|---|---|---|---|---|---|---|---|
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ8 | 15mm | 10mm | 4kN | 2.4kN | 1.3~2kN | 6×8×25 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ10 | 20mm | 15mm | 7kN | 4.5kN | 2.3~3.5kN | 8×10×30 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ12 | 25mm | 20mm | 10kN | 6.5kN | 3.3~5kN | 10×12×40 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ16 | 30mm | 25mm | 15kN | 9.5kN | 5~7.5kN | 12×16×50 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ18 | 35mm | 30mm | 20kN | 12.5kN | 6.7~10kN | 14×18×60 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ20 | 40mm | 35mm | 25kN | 15.5kN | 8.3~12.5kN | 16×20×65 |
| Blue Zinc/Yellow Zinc | Q195 | 4.8 | φ25 | 50mm | 45mm | 38kN | 23kN | 12.7~19kN | 20×25×80 |
