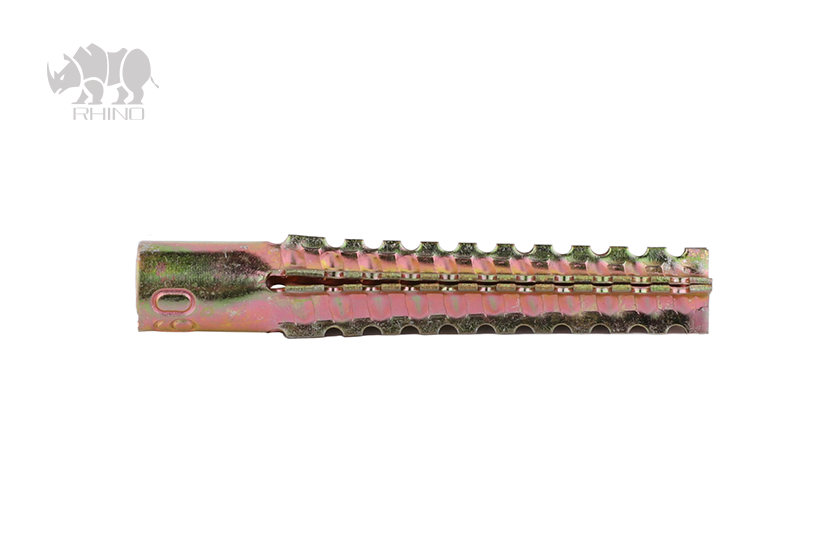

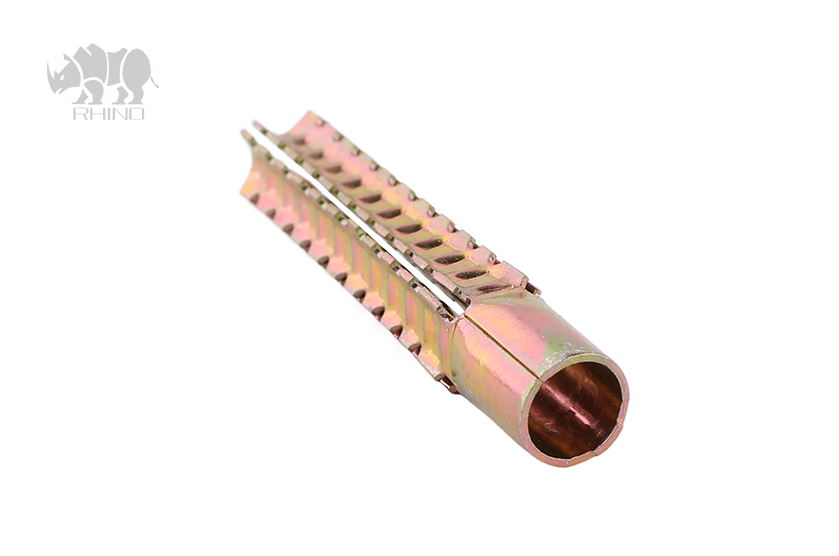

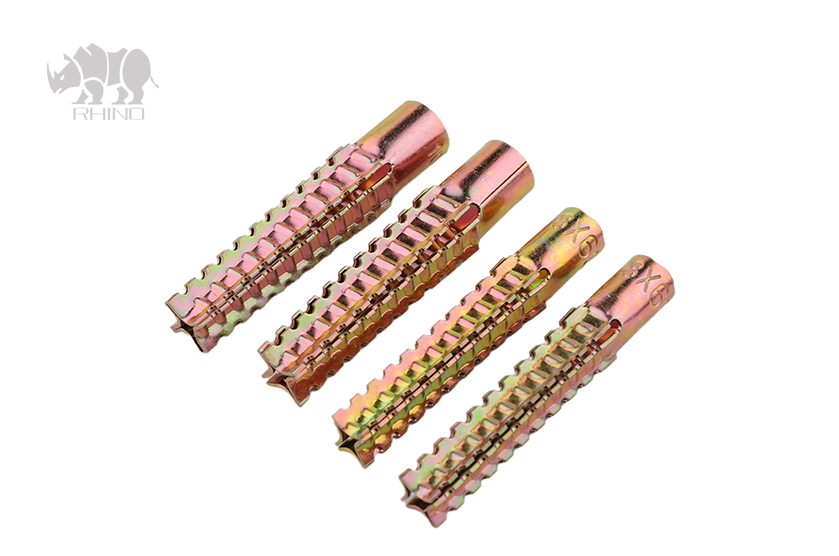

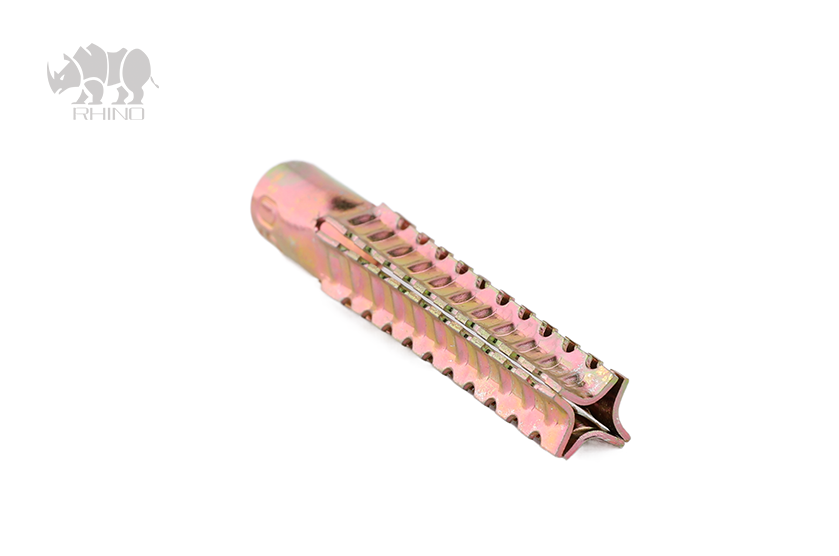

A metal anchor is a component that secures attachments to substrates like concrete through mechanical expansion or chemical bonding.
●Material: Q195/Q235
●Finish: Blue Zinc/Yellow Zinc
●Grade: 4.8
●Sleeve Length(mm): 30, 32, 39, 60
| Finish | Material | Grade | Sleeve Length | Installation hole dia. | Effective burial depth | Size |
|---|---|---|---|---|---|---|
| Blue Zinc/Yellow Zinc | Q195/Q235 | 4.8 | 30 | 6 | 30 | 5*30 |
| Blue Zinc/Yellow Zinc | Q195/Q235 | 4.8 | 32 | 8 | 35 | 6*32 |
| Blue Zinc/Yellow Zinc | Q195/Q235 | 4.8 | 39 | 10 | 40 | 8*38 |
| Blue Zinc/Yellow Zinc | Q195/Q235 | 4.8 | 60 | 10 | 60 | 8*60 |
| Blue Zinc/Yellow Zinc | Q195/Q235 | 4.8 | 60 | 12 | 60 | 10*60 |
