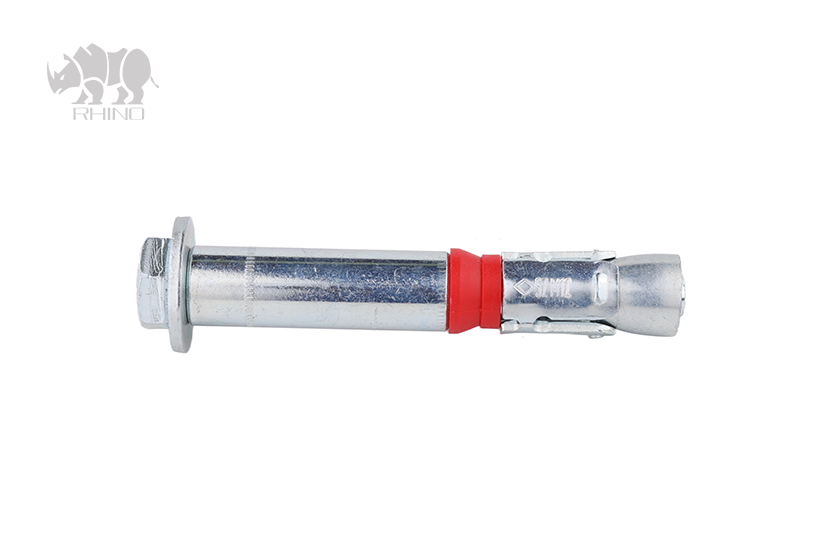

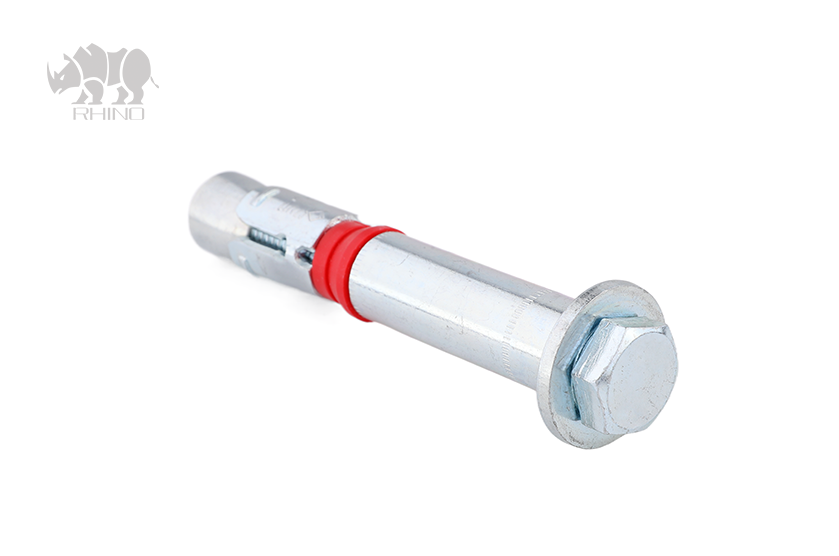

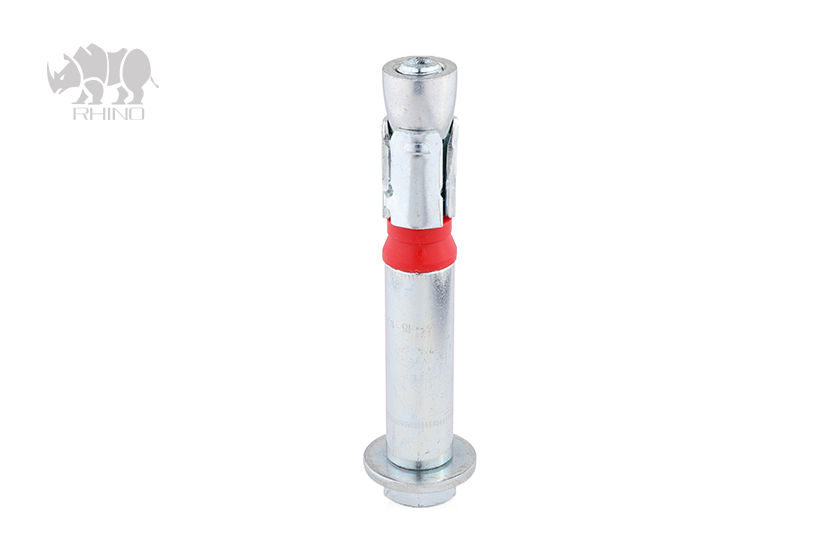

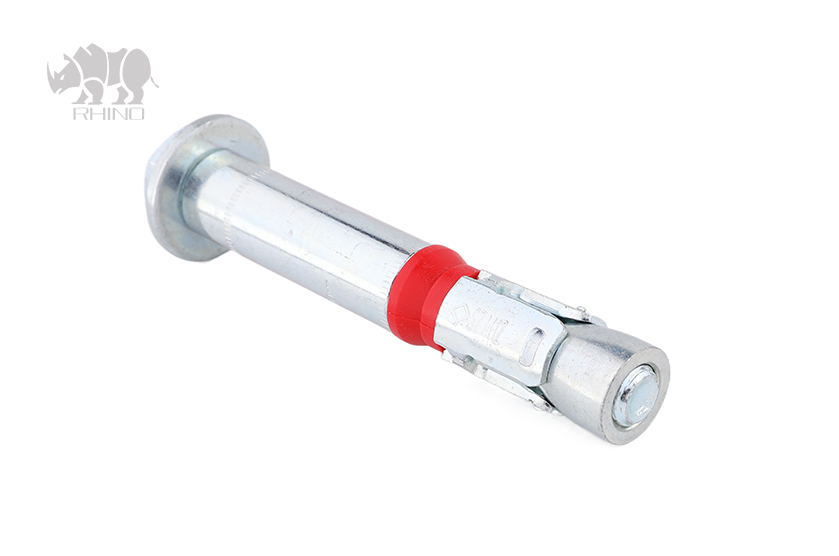

Hex Head Heavy Duty Fixings Anchor Bolt V-1-Steel Anchor-Yuyao Rhino Hardware Co.,LTD.

Heavy-duty anchors provide extreme load capacity and seismic resistance via large-area expansion.

Material: 35K

●Finish: Blue Zinc

●Grade: 8.8

●Thread Rod Dia.(mm): 6, 8, 10, 12, 16, 20, 24

●Finish(Nail): Blue Zinc

Concrete

solid bricks/hollow bricks

steel structures

stone blocks

Prve Next

Finish	Material	Grade	Thread Rod Dia.	Dia.	Depth(Min)	Thickness of the fixed object	Hole diameter of the fixed object	Effective burial depth（Min）	Bolt Length	Sleeve Dia.	Size	Tensile Strength[kN] C20/25 Non-cracking concrete
Blue Zinc	35K	8.8	6	10	70	10	12	50	70	10	M6 x 70 Ø10	14
						20		80			M6 x 80 Ø10
						40		100			M6 x 100 Ø10
						50		110			M6 x 110 Ø10
		8.8	8	12	85	5	14	60	80	12	M8 x 80 Ø12	19
						15		90			M8 x 90 Ø12
						25		100			M8 x 100 Ø12
						35		110			M8 x 110 Ø12
						45		120			M8 x 120 Ø12
		8.8	10	16	95	15	18	70	100	16	M10 x 100 Ø16	27
		8.8	10	16	95	25	18	70	110	16	M10 x 110 Ø16	27
						35		120			M10 x 120 Ø16
						55		140			M10 x 140 Ø16
						75		160			M10 x 160 Ø16
						95		180			M10 x 180 Ø16
		8.8	12	18	110	10	20	85	110	18	M12 x 110 Ø18	37
						20		120			M12 x 120 Ø18
						40		140			M12 x 140 Ø18
						50		150			M12 x 150 Ø18
						70		170			M12 x 170 Ø18
						100		200			M12 x 200 Ø18
		8.8	16	24	130	20	26	100	140	24	M16 x 140 Ø24	47
						30		150			M16 x 150 Ø24
						50		170			M16 x 170 Ø24
						80		200			M16 x 200 Ø24
						100		220			M16 x 220 Ø24
		8.8	20	28	160	20	31	125	170	28	M20 x 170 Ø28	65
						50		200			M20 x 200 Ø28
						90		240			M20 x 240 Ø28
		8.8	24	32	190	30	36	150	210	32	M24 x 210 Ø32	79
						50		230			M24 x 230 Ø32
						55		235			M24 x 235 Ø32
