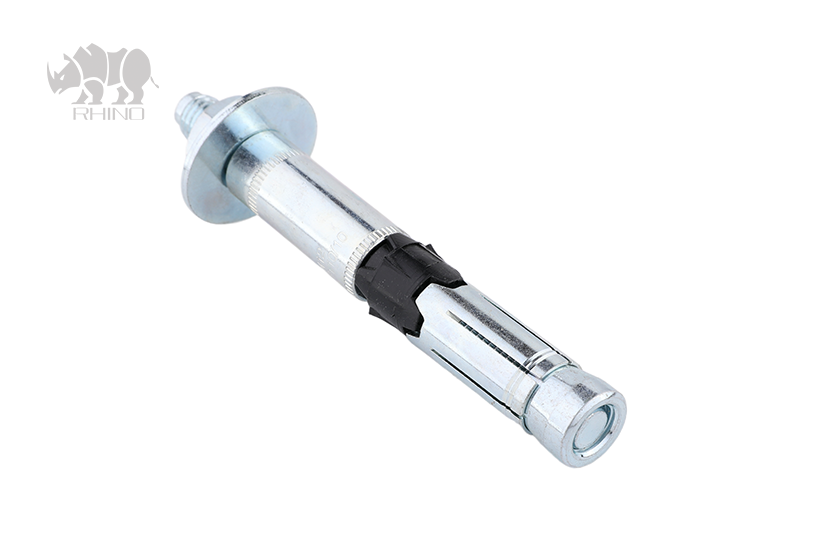

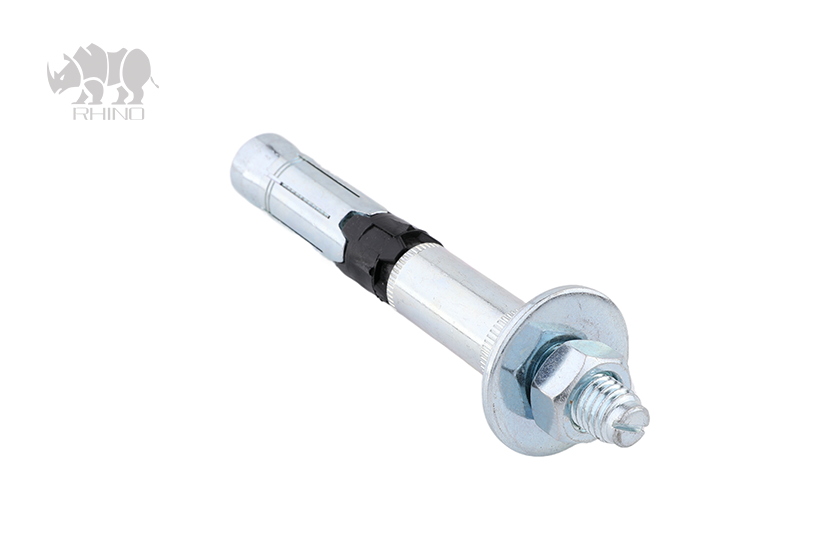

Heavy Duty anchor Bolt with Slotted V-3-Steel Anchor-Yuyao Rhino Hardware Co.,LTD.

Heavy-duty anchors provide extreme load capacity and seismic resistance via large-area expansion.

●Material: 35K

●Finish: Blue Zinc

●Grade: 8.8

●Thread Rod Dia.(mm): 6, 8, 10, 12, 16, 20, 24

Concrete

solid bricks/hollow bricks

steel structures

stone blocks

Finish	Material	Grade	Thread Rod Dia.	Dia.	Depth(Min)	Thickness of the fixed object	Hole diameter of the fixed object	Effective burial depth（Min）	Bolt Length	Sleeve Dia.	Size	Tensile Strength[kN] C20/25 Non-cracking concrete
Blue Zinc	35K	8.8	6	10	70	10	12	50	79	10	M6 x 70 Ø10	14
						20			89		M6 x 80 Ø10
						40			109		M6 x 100 Ø10
						50			119		M6 x 110 Ø10
		8.8	8	12	85	5	14	60	94	12	M8 x 80 Ø12	19
						15			104		M8 x 90 Ø12
						25			114		M8 x 100 Ø12
						35			124		M8 x 110 Ø12
						45			134		M8 x 120 Ø12
		8.8	10	16	95	15	18	70	119	16	M10 x 100 Ø16	27
		8.8	10	16	95	25	18	70	129	16	M10 x 110 Ø16	27
						35			139		M10 x 120 Ø16
						55			159		M10 x 140 Ø16
						75			179		M10 x 160 Ø16
						95			199		M10 x 180 Ø16
		8.8	12	18	110	10	20	85	134	18	M12 x 110 Ø18	37
						20			144		M12 x 120 Ø18
						40			164		M12 x 140 Ø18
						50			174		M12 x 150 Ø18
						70			194		M12 x 170 Ø18
						100			224		M12 x 200 Ø18
		8.8	16	24	130	20	26	100	167	24	M16 x 140 Ø24	47
						30			177		M16 x 150 Ø24
						50			197		M16 x 170 Ø24
						80			227		M16 x 200 Ø24
						100			247		M16 x 220 Ø24
		8.8	20	28	160	20	31	125	202	28	M20 x 170 Ø28	65
						50			232		M20 x 200 Ø28
						90			272		M20 x 240 Ø28
		8.8	24	32	190	30	36	150	248	32	M24 x 210 Ø32	79
						50			268		M24 x 230 Ø32
						55			273		M24 x 235 Ø32
